Condensate Chambers & Seal Pots
ASME-certified pressure vessels for instrument loop process connection protection. Standard stock ships immediately. Custom configurations manufactured to order.
ASME Compliant
Section VIII & IX
316SS Stock
Ships Immediately
7 Port Configurations
Standard to Custom
Hydro Tested
Every Chamber
APPLICATION
Protecting instruments from the process — the right way.
A condensate chamber sits between the process line and the instrument, creating a physical barrier that prevents process conditions from reaching the measurement device directly. In steam service, it maintains a liquid water column that protects the transmitter diaphragm from direct steam contact and temperature extremes. In gas service, it traps condensate and foreign material before they reach the instrument. In liquid service with corrosive or viscous fluids, it isolates the instrument from direct contact with the process fluid.

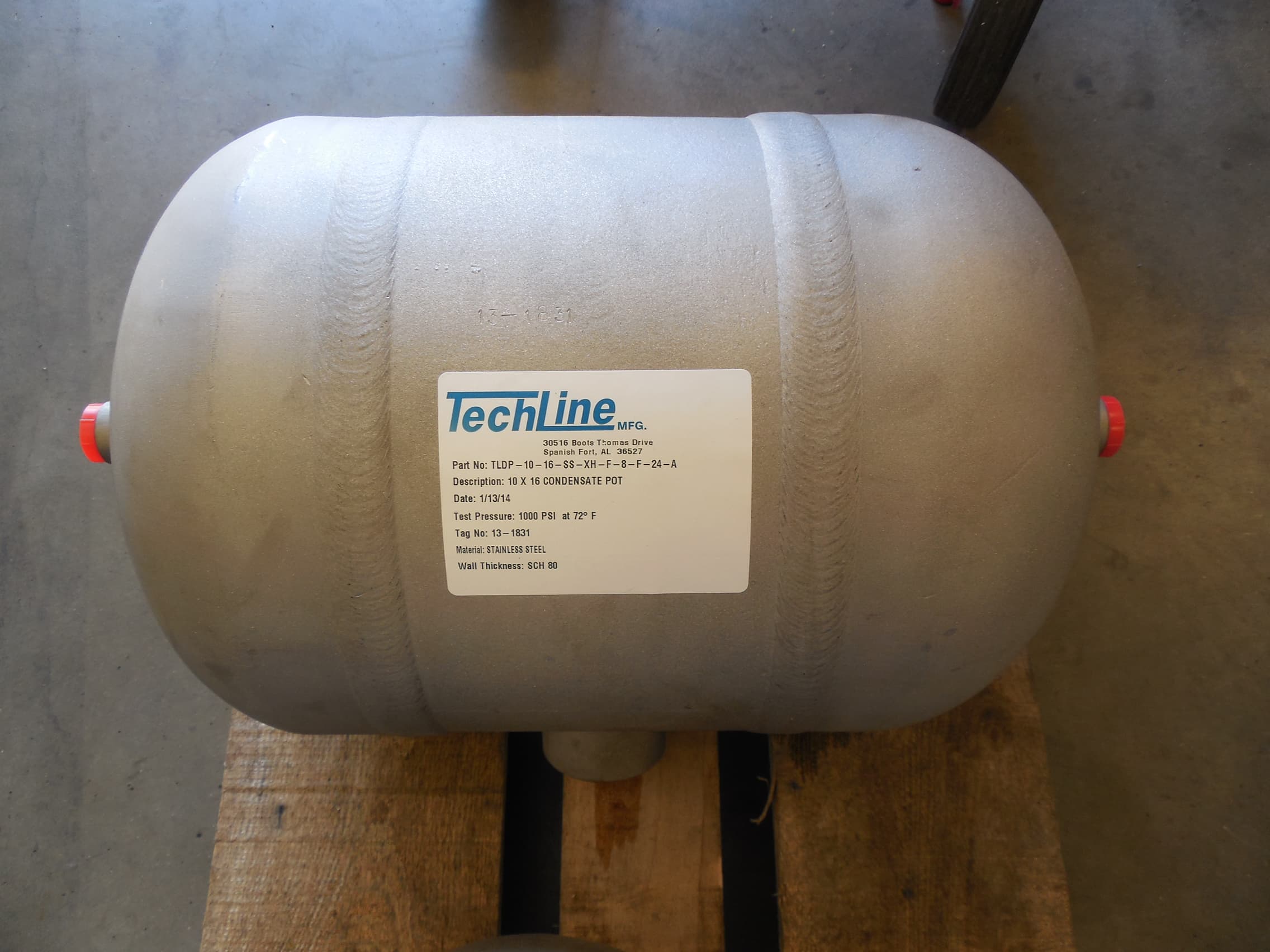

TechLine condensate chambers are fabricated pressure vessels. They are not catalog items assembled from standard fittings — they are manufactured from seamless pipe, welded under ASME Section IX qualified welding procedures, hydrotested per ASME Section VIII Division 1 UG-99, and shipped with a pressure test certificate. Every chamber. No exceptions.
Standard stock: 3" pipe, 12" length, Schedule 80, 316SS or carbon steel, ½" FNPT connections, Configuration A. Ships immediately. For non-standard configurations — different pipe size, different material, different port configuration — TechLine manufactures to order with expedited delivery available.
CONFIGURATION & ORDERING
Configuration and Ordering
Part number system:
TLDP - [Pipe Size] - [Length] - [Material] - [Wall] - [Connection Style] - [Connection Size] - [Port Config]
Stock example: TLDP-3-12-316SS-XH-F-8-A= 3" pipe, 12" length, 316SS, Schedule 80, Female NPT, 1/2" connections, Configuration A
MATERIALS
Materials
Carbon Steel
CS
General service, non-corrosive
304 Stainless Steel
SS
Moderate corrosion resistance
316 Stainless Steel
316SS
High corrosion, standard Gulf Coast outdoor
Chrome 11 (1.25Cr-0.5Mo)
P11
High temperature steam to ~900°F
Chrome 22 (2.25Cr-1Mo)
P22
High temperature steam to ~1050°F
Chrome 91 (9Cr-1Mo-V)
P91
Supercritical steam to ~1100°F
Hastelloy
—
Severe corrosive service
ASME COMPLIANCE
ASME Compliance
All TechLine condensate chambers are manufactured under ASME Section IX welding procedures with procedure and performance qualifications on file. Hydrotested per ASME Section VIII Division 1, UG-99. Pressure test certificate provided with every chamber. X-ray and Dye-Penetrant testing available on request at additional cost.
